使用enps模拟PPPOE的配置
pppoe 的配置有服务端和客户端的配置，服务端重要的配置是 创建一个地址池，为客户端获取到ip提供地址。创建一个虚拟模板，指定客户端(remote)使用那个地址池，同时指定虚拟模板的ip作为，客户端的网关。虚拟模板和端口想绑定。
# pppoe 服务器端的配置
1. 创建ip地址池
ip pool pool-pppoe1
gateway-list 10.0.0.1
network 10.0.0.0 mask 255.255.255.0
2. 创建模板（0 ~ 1023）
interface Virtual-Template1
remote address pool pool-pppoe1
ip address 10.0.0.1 255.255.255.0
3. 绑定到对应的接口
interface GigabitEthernet0/0/0
pppoe-server bind Virtual-Template 1
4.设置认证的密码
aaa
local-user user1 password cipher 123456
local-user user1 service-type ppp
客户端的主要配置
1. 进入拨号视图，定义规则1 运行ip流量（ 流量也可以是 ipv6)
dialer-rule
dialer-rule 1 ip permit
2. 创建拨号接口（接口的范围是 )
interface Dialer1
link-protocol ppp
ppp chap user user1
ppp chap password simple 123456
ip address ppp-negotiate
dialer user user1
dialer bundle 1
dialer timer idle 300
dialer-group 1
3. 绑定物理接口
pppoe-client dial-bundle-number 1
4. 设置静态路由

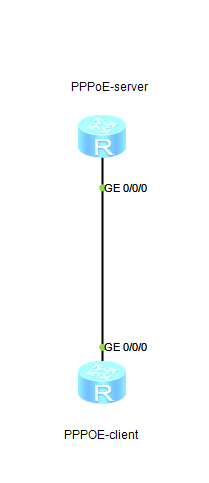

ip route-static 0.0.0.0 0 Dialer 1实验拓扑图
完整的配置
system-view
undo info-center enable
sysname PPPoE-server
ip pool 1
gateway-list 10.0.0.1
network 10.0.0.0 mask 255.255.255.0
quit
interface virtual-template 1
ip address 10.0.0.1 24
remote address pool 1
qui
interface g0/0/0
pppoe-server bind virtual-template 1
quit
aaa
local-user user1 password cipher 123456
local-user user1 service-type ppp
quit# PPPoE-client
system-view
undo info-center enable
sysname PPPoE-client
dialer-rule
dialer-rule 1 ip permit
quit
interface dialer 1
link-protocol ppp
ppp chap user user1
ppp chap password simple 123456
ip address ppp-negotiate
dialer user user1
dialer bundle 1
dialer timer idle 300
dialer-group 1
quit
int g0/0/0
pppoe-client dial-bundle-number 1
quit

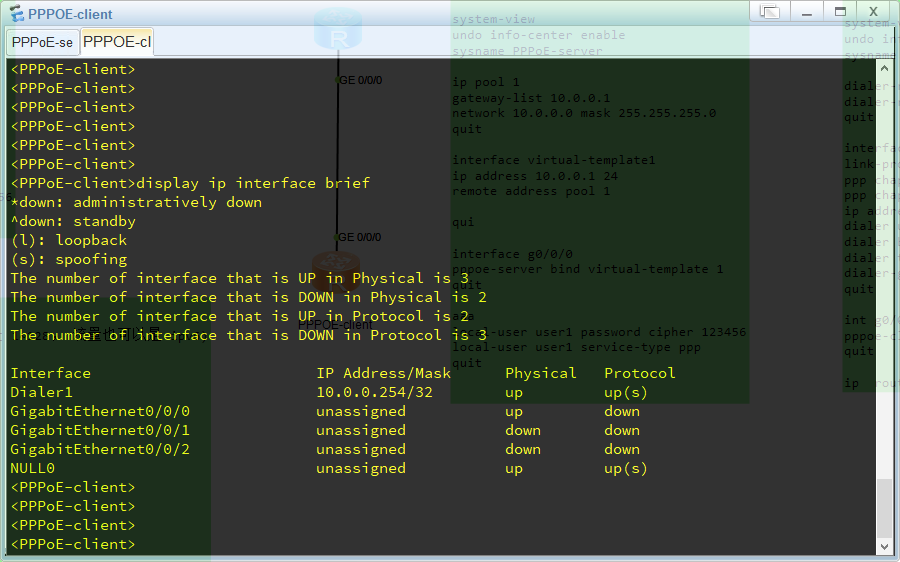

ip route-static 0.0.0.0 0 dialer 1检查是否获取到ip
